Multi-Process Code Execution in RoboticsAcademy

This week’s goal was proving that RAM can manage two independent agent processes from a single exercise session — the foundation needed for the Drone Cat-Mouse exercise.

Why the browser sends the zip

One design decision worth noting: the exercise code — including processB/ — is bundled and sent from the browser, not fetched from a database on the RAM side (which was one option considered).

The reason comes down to future use. RoboticsAcademy feeds into Unibotics, where students will eventually share and load each other’s code. In that model, code lives with the client and gets pushed to RAM at run time — not pulled from a server-side store. Keeping the zip in the browser payload keeps that path clean and avoids coupling RAM to any particular storage backend.

The mentor flagged this as a good design point for long-term compatibility.

How the Play flow works now

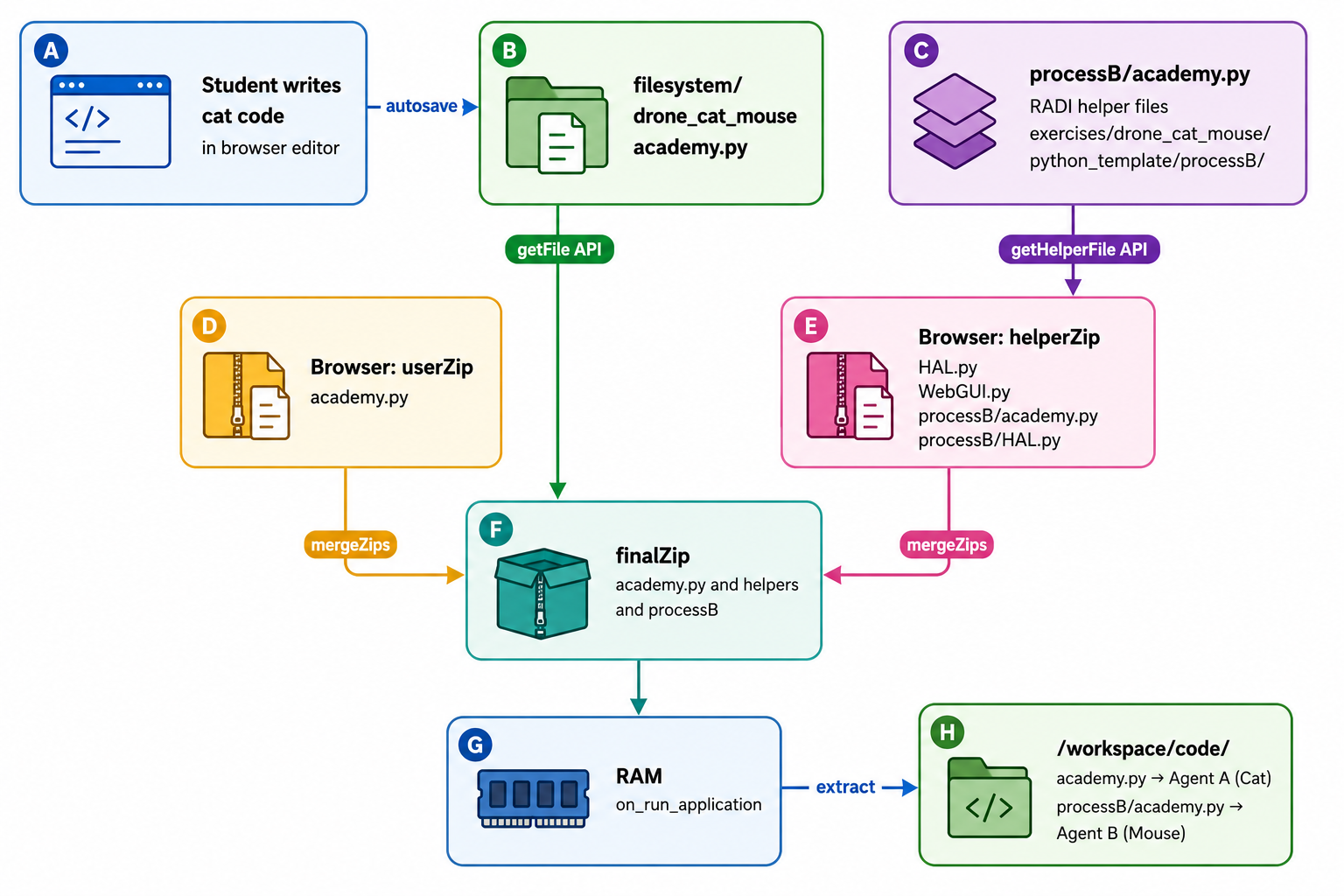

The browser doesn’t just send the student’s code — it builds a finalZip by merging three sources:

1. userZip — the student’s academy.py from the browser editor (cat code, autosaved)
2. helperZip — fetched from the filesystem: HAL.py, WebGUI.py, and the entire processB/ folder (pre-programmed mouse + its own HAL.py)
3. The two zips are merged client-side into finalZip and sent to RAM

RAM receives the merged payload, extracts everything to /workspace/code/:

/workspace/code/
├── academy.py              ← student code (cat, drone0)
├── HAL.py                  ← drone0 interface
├── hal_interfaces/
├── gui_interfaces/
├── console_interfaces/
└── processB/
    ├── academy.py          ← pre-programmed mouse
    └── HAL.py              ← drone1 interface

RAM then launches both:

python3 /workspace/code/academy.py           ← agentA (cat, drone0)
python3 /workspace/code/processB/academy.py  ← agentB (mouse, drone1)

Both go into the application_processes dict. Pause sends SIGSTOP to both. Resume sends SIGCONT. Stop kills both.

Verified both running simultaneously from their extracted paths:

11255  python3 /workspace/code/academy.py
11256  python3 /workspace/code/processB/academy.py

One process for the cat, one for the mouse — confirmed live. Each HAL resolves to a different drone namespace — same import name, different process context, different physical drone.

Slowly heading towards the goal.

What this means for the project

The pattern is exercise-agnostic. Any future exercise needing N agents follows the same structure: add a processB/, processC/ folder to the exercise template. RAM detects and launches them. The application_processes dict handles lifecycle for all uniformly.

Pull Requests

Also drafted and opened PRs this week consolidating all previous work:

• RoboticsApplicationManager #284
• RoboticsInfrastructure #742

Under review.
